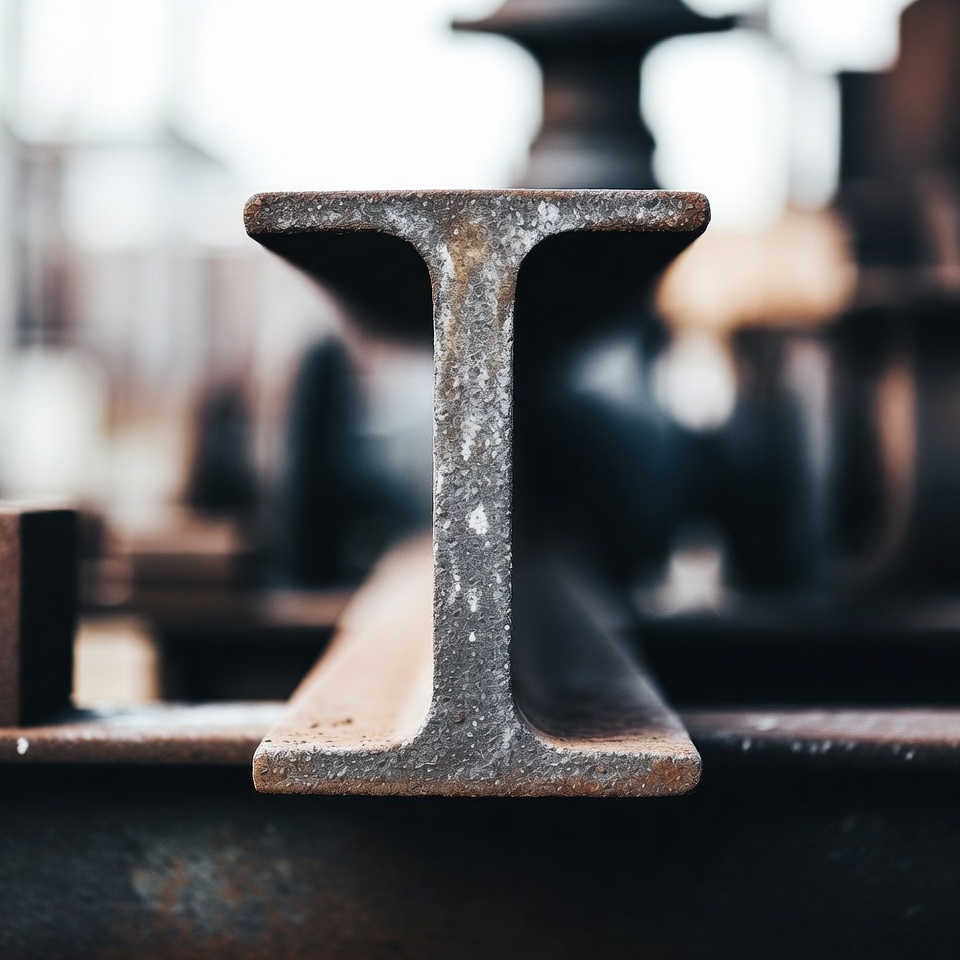

I beam sizes often look “easy” because the first number people notice is the depth (height). That shortcut creates trouble. A beam’s performance is shaped by multiple dimensions working together—depth, flange width, web thickness, flange thickness, and even the corner radii where the web meets the flanges. Those details decide how the beam bends, how it resists vibration, and how stable it remains after years of service.

A common surprise on projects is that a slightly shorter beam with a wider flange can behave better for certain loads than a taller but narrower section. That’s why suppliers like Vishwageeta (Vishwa Geeta Ispat) emphasize verified specifications instead of “visual selection.”

HOW INDUSTRY STANDARDS DEFINE I BEAM SIZES IN PRACTICAL USE

In India, many buyers and fabricators work with the ISMB series, where sizes are commonly referenced by nominal depth (for example 150, 200, 300). In real supply, the final dimensions can vary slightly due to rolling tolerances and production differences between mills. These variations may look minor on paper, but they can matter for heavy structures, connections, and weight calculations.

THE REAL RELATION BETWEEN SIZE AND THE LOAD IT CAN HANDLE

Many first-time buyers don’t realize how much difference a few millimetres can make. When flange thickness or web thickness changes, the section stiffness can rise noticeably. I beam sizes are a quick reference, but real performance depends on where the steel sits—especially in the flanges, which resist bending most effectively.

Two beams that look nearly identical from a distance can behave very differently under load because one might have thicker flanges, a wider flange, or a different web proportion. This is exactly why an engineer insists on checking the full section properties rather than selecting only by “height.”

COMMON CONFUSIONS WHEN BUYERS SELECT I BEAM SIZES TOO QUICKLY

• Height-only selection: two beams with the same depth can have very different flange widths and thicknesses.
• Mixing standards: comparing ISMB sizes with UB/UC sections seen online makes the comparison inaccurate.
• Ignoring weight per meter: kg/m changes rapidly with thickness, affecting total tonnage and billing.
• Missing connection needs: bolt holes, plates, and brackets behave differently depending on flange/web thickness.

HOW SITE CONDITIONS CHANGE THE CHOICE OF I BEAM SIZE MORE THAN PEOPLE EXPECT

The correct i beam sizes depend heavily on site realities. For industrial sheds with longer spans, deflection control becomes a priority—deeper sections may be required. For mezzanine floors, platforms, and storage racks, a lighter section may be preferred to keep dead load lower and reduce stress on columns and foundations.

Wind exposure, machine vibration, column spacing, and even shifting floor loads change the selection logic. In many projects, the “best size” is the one that meets stiffness and safety limits without introducing unnecessary weight.

THE ROLE OF I BEAM SIZES IN COST CALCULATION THAT SURPRISES MANY PEOPLE

Steel pricing is strongly linked to total weight. When flange width or thickness increases, the kg per meter rises—and the final bill rises with it. Buyers sometimes choose heavier beams hoping to “add safety,” but the extra weight can increase transport cost, fabrication time, and crane/lifting planning.

Vishwageeta typically advises comparing structural requirement and financial impact together. The right decision is not the heaviest beam—it’s the beam that satisfies the design with efficient weight.

ENGINEERS RELY ON SIZE DATA TO MATCH THE BEAM WITH STRUCTURAL DRAWINGS

Engineers check bending moment, shear strength, and deflection limits, then match those calculations with available i beam sizes. This ensures the selected section stays within safe limits across the span and load conditions. It also prevents long-term issues like gradual sagging that can appear years later when a beam is marginally under-sized.

A BEAM’S SIZE ALSO AFFECTS HOW EASY OR HARD IT IS TO FABRICATE

Fabrication changes with thickness. Very thick sections are harder to cut and weld, and heat control becomes important. Very thin sections need careful handling to avoid edge deformation and fit-up issues during welding and drilling. Choosing familiar, stable i beam sizes helps workshops reduce wastage and keep fabrication consistent.

WHY THE CORRECT SIZE ENSURES SAFETY AND LONG-TERM PERFORMANCE

Beam size controls load transfer through the structure. If the beam is too small, it can deflect excessively or feel “bouncy.” If it’s too large, it adds unnecessary dead load to columns and footings, increasing cost without adding useful performance. Both outcomes are avoidable when selection is done with verified charts and proper comparison.

FINAL THOUGHTS ON CHOOSING THE RIGHT I BEAM SIZES

The right size is not chosen by guessing, visuals, or “tallest is strongest.” It is chosen by comparing dimensions, thickness distribution, project conditions, and structural requirements. Among structural components, i beam sizes have a major impact on stability, cost, and safety— so careful selection pays back over the entire life of the building.

I BEAM SIZE SELECTION CHECKLIST (ACCORDION)

Use this checklist as a buyer/fabricator sanity check. For critical structures, final selection should be verified by a structural engineer.

Open / Close: I Beam Size Checklist

Hide

Before finalizing i beam sizes, confirm you are comparing the complete section—not only depth. This reduces site confusion, cost overruns, and drawing mismatches.

Checklist focus: series • full dimensions • kg/m • span/deflection • fabrication • logistics

Check Point	What to Verify	Why It Matters	Typical Mistake
Section series/standard	ISMB / other series (match your drawings)	Ensures dimensional and property compatibility	Comparing with UB/UC or random online charts
Depth (nominal vs actual)	Nominal depth and tolerance range	Affects alignment, clearances, and connection geometry	Assuming exact depth without tolerance
Flange width	Measure/confirm flange width from chart	Controls stability and bending resistance characteristics	Choosing narrow flange where wider is needed
Web & flange thickness	Confirm thickness values, not visual guess	Major impact on kg/m and stiffness	Assuming “same height = same thickness”
Weight per meter (kg/m)	Confirm kg/m and total length to estimate tonnage	Impacts pricing, transport, lifting, and billing checks	Underestimating tonnage by ignoring kg/m
Span & deflection limits	Span, live load, vibration sensitivity	Prevents sagging, bounce, and long-term deformation	Choosing size without deflection thinking
Fabrication requirements	Cutting/welding/drilling practicality	Controls cost, quality, time, and fit-up stability	Choosing thickness that complicates welding
Site logistics	Truck capacity, crane/hoist limits, handling method	Avoids site delays due to underplanned lifting	Ordering heavy beams without lift planning

If you share (1) span, (2) load type (roof/mezzanine/machine zone), (3) column spacing, and (4) location environment (wind/vibration), Vishwageeta can guide you to the most practical i beam sizes and the right chart references for comparison.

• Always match the section series in your drawings with the supplier’s section chart.
• Compare offers using full dimensions and kg/m—not only nominal depth.
• For critical structures, get an engineer’s verification before freezing the order.

Frequently Asked Questions

Can I select i beam sizes only by “height” for small projects?

You can shortlist by depth, but final selection should still check flange width, thickness, and kg/m—especially if the span is long or loads are not predictable.

Why does the same i beam depth show different kg/m in different charts?

Because the section series and dimensions (flange width/thickness, web thickness, radii, tolerances) can differ. Always compare using the same standard and series.

Does heavier i beam always mean safer?

Not always. Extra weight can add unnecessary dead load and cost. Safety comes from meeting design checks (strength + deflection) with an efficient section.

What details should I share to get the right size recommendation?

Span, load type (roof/mezzanine/machinery), column spacing, and site conditions (wind/vibration). This helps match i beam sizes to real performance needs.

Conclusion

I beam sizes are a complete geometry decision—not a single height number. When depth, flange width, and thickness are matched correctly to span and load, the structure stays stable, fabrication becomes smoother, and cost stays controlled. Verified charts and clear specifications are the fastest way to avoid confusion later.
