A ready-reference pipe size ms pipe weight chart in kg per metre as per IS 1239 — covering Light, Medium and Heavy class pipes from 15mm to 200mm nominal bore. All sizes, all classes, in one place.
Need MS pipe rates or bulk supply? Send a query or join the channel for live updates.
📋 Send EnquiryFill the contact form 💬 Join WhatsApp ChannelGet rate updates instantlyMild Steel Pipe — Definition & Classification
MS pipe, or Mild Steel pipe, is a hollow cylindrical steel section manufactured by electric resistance welding (ERW) or seamless process. It is classified under IS 1239 Part 1 and is one of the most widely used structural and utility pipes across construction, plumbing, industrial, and fabrication applications in India. When searching for a pipe size ms pipe weight chart in kg, IS 1239 is the standard reference.
MS pipes are sold by Nominal Bore (NB) — which is an approximate internal diameter designation — and are available in three weight classes based on wall thickness: Light, Medium, and Heavy. The weight per metre varies by both nominal bore and the class chosen. Understanding this is essential before reading any weight chart table.
Thinner walls, lower weight. Used for low-pressure water lines, conduit purposes, and general light-duty structural applications where pressure rating is not a concern.
Standard specification. The most commonly supplied and purchased class. Suitable for water supply, gas lines (low pressure), scaffolding, fencing, and general fabrication.
Thickest walls, highest pressure rating. Used in high-pressure pipelines, structural columns, heavy fabrication, fire-fighting lines, and industrial piping systems.

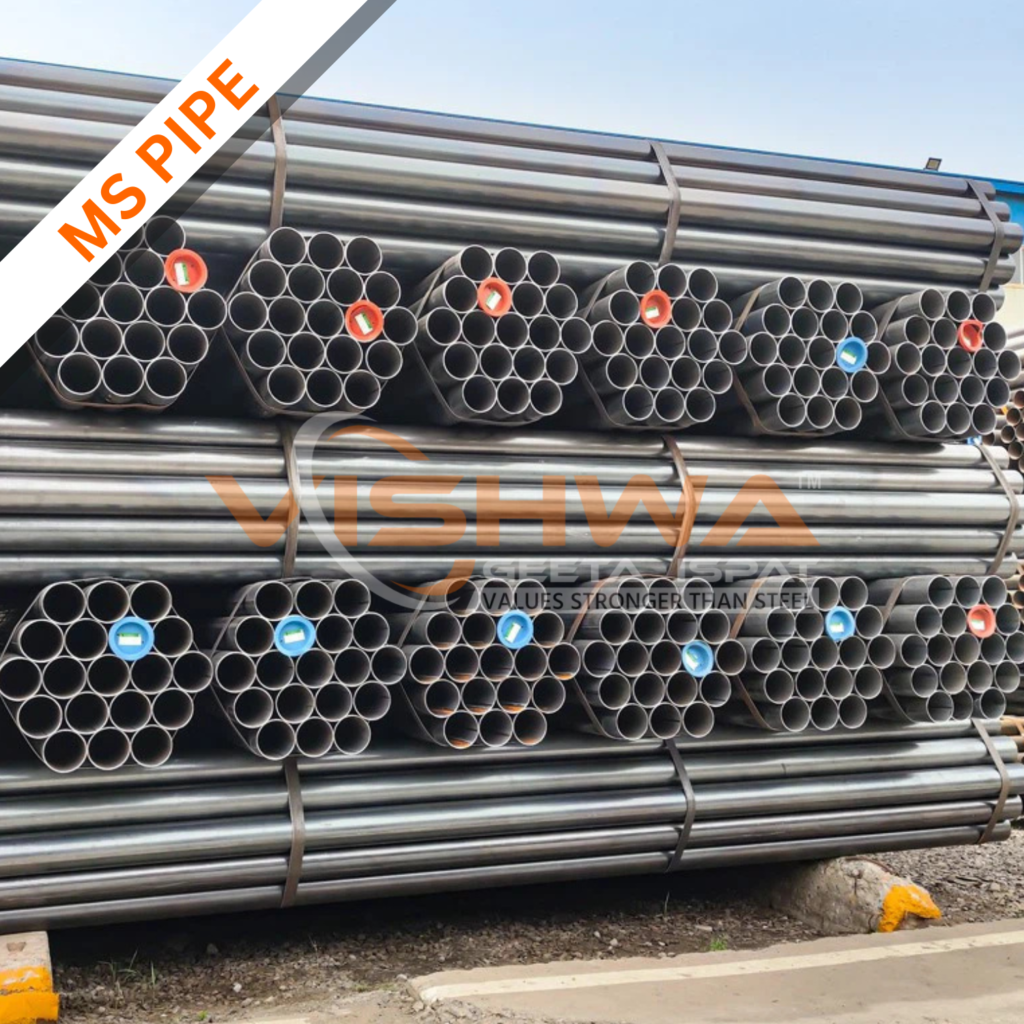

MS pipe bundles stacked at a steel yard — all three classes (Light, Medium, Heavy) follow IS 1239 Part 1
The Nominal Bore (NB) is not the actual internal diameter — it is a size designation only. The actual outer diameter (OD) and wall thickness determine the real internal bore and the weight. Always refer to OD and wall thickness when specifying for engineering or structural applications.
IS 1239 Part 1 — Pipe Size MS Pipe Weight Chart in KG Per Metre — Light, Medium & Heavy Class
The pipe size ms pipe weight chart in kg below lists standard MS pipe sizes from 15mm to 200mm nominal bore, with outer diameter (OD), wall thickness, and weight per metre for each class. All weights in this pipe size ms pipe weight chart in kg are in kilograms per metre (kg/m) as per IS 1239 Part 1. This is the most complete pipe size ms pipe weight chart in kg for Indian standard MS pipes available for free reference.
| Product | Nominal Bore | OD (mm) | Light WT (mm) | Light kg/m | Medium WT (mm) | Medium kg/m | Heavy WT (mm) | Heavy kg/m |
|---|---|---|---|---|---|---|---|---|
| MS Pipe | 15mm (½") | 21.3 | 2.0 | 0.95 | 2.6 | 1.21 | 3.2 | 1.44 |
| MS Pipe | 20mm (¾") | 26.9 | 2.3 | 1.38 | 2.6 | 1.56 | 3.2 | 1.87 |
| MS Pipe | 25mm (1") | 33.7 | 2.6 | 2.00 | 3.2 | 2.41 | 4.0 | 2.93 |
| MS Pipe | 32mm (1¼") | 42.4 | 2.6 | 2.55 | 3.2 | 3.10 | 4.0 | 3.79 |
| MS Pipe | 40mm (1½") | 48.3 | 2.9 | 3.23 | 3.2 | 3.56 | 4.0 | 4.37 |
| MS Pipe | 50mm (2") | 60.3 | 2.9 | 4.08 | 3.6 | 5.03 | 4.5 | 6.19 |
| MS Pipe | 65mm (2½") | 76.1 | 3.2 | 5.71 | 3.6 | 6.42 | 4.5 | 7.93 |
| MS Pipe | 80mm (3") | 88.9 | 3.2 | 6.72 | 4.0 | 8.36 | 4.8 | 9.90 |
| MS Pipe | 100mm (4") | 114.3 | 3.6 | 9.75 | 4.5 | 12.15 | 5.4 | 14.46 |
| MS Pipe | 125mm (5") | 139.7 | 4.0 | 13.40 | 4.5 | 15.04 | 5.4 | 17.93 |
| MS Pipe | 150mm (6") | 168.3 | 4.5 | 18.16 | 4.8 | 19.36 | 5.4 | 21.63 |
| MS Pipe | 200mm (8") | 219.1 | 5.0 | 26.40 | 5.9 | 31.05 | 6.3 | 33.09 |

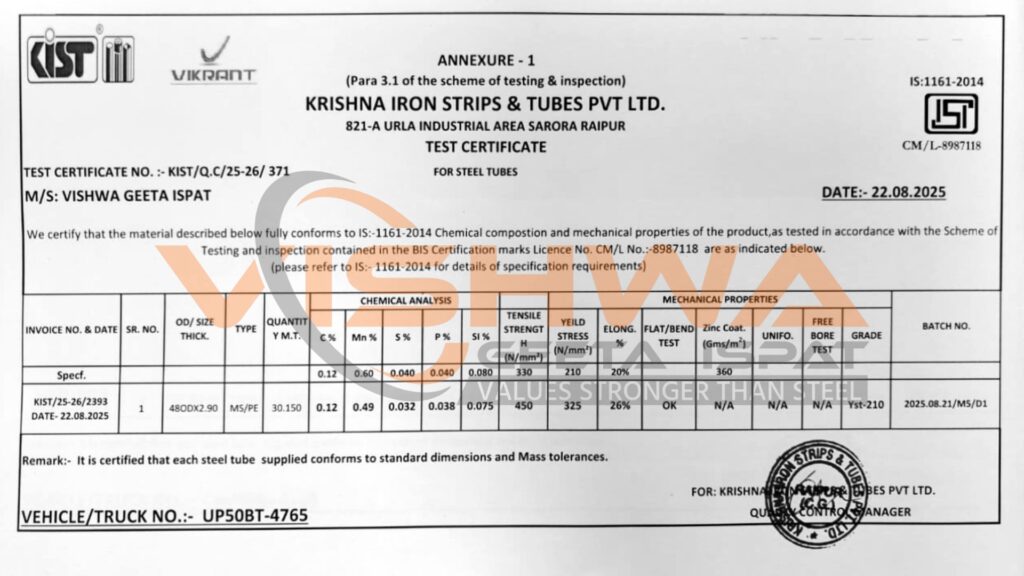

| Reference: IS 1239 Part 1. WT = Wall Thickness. All weights in kg/m. Values are indicative; actual weights may vary slightly by manufacturer. Verify with mill test certificate for critical applications. | ||||||||
To convert values from this pipe size ms pipe weight chart in kg per metre to kg per foot, multiply by 0.3048. For example: 50mm Medium class pipe at 5.03 kg/m = 5.03 × 0.3048 = 1.53 kg/foot. Bookmark this pipe size ms pipe weight chart in kg for quick on-site reference.
Formula for Sizes Not in the Pipe Size MS Pipe Weight Chart in KG
If you need to calculate the weight of an MS pipe size not listed in the pipe size ms pipe weight chart in kg above — or need to verify a specific wall thickness — use the standard steel pipe weight formula. This is the same formula used to build every pipe size ms pipe weight chart in kg table:
To calculate total weight for a quantity of pipes using the pipe size ms pipe weight chart in kg:
Total Weight (kg) = Weight per metre (kg/m) × Length (m) × Number of pipes
For example: 10 pipes of 25mm Medium class, each 6 metres long = 2.41 × 6 × 10 = 144.6 kg total. Always cross-check with the pipe size ms pipe weight chart in kg before placing a bulk order.
Common Applications — Refer Pipe Size MS Pipe Weight Chart in KG for Sizing
When selecting MS pipes for any of the applications below, always refer to the pipe size ms pipe weight chart in kg to estimate load, freight, and structural requirements. This helps contractors and fabricators plan material procurement accurately before placing orders.
MS pipes serve four major sectors — each with different NB size and class requirements
Scaffolding, handrails, columns, formwork supports, crash barriers, and structural hollow sections in building projects.
Water supply lines, drainage systems, irrigation pipelines, and overhead water tank connections in residential and commercial projects.
Machine guards, conveyor frames, equipment stands, compressed air lines, hydraulic systems, and general fabrication work.
Road dividers, fencing, gate frames, electrical conduit, fire-fighting lines, and utility distribution systems.
Common Queries on Pipe Size MS Pipe Weight Chart in KG
Vishwageeta Ispat Trader is an iron and steel trading business based in Raipur, Chhattisgarh. This reference guide is published for informational purposes to assist contractors, fabricators, and project teams with standard MS pipe size and weight data.
