Leading Supplier of MS Wire Rods from Raipur

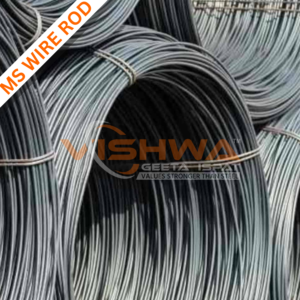

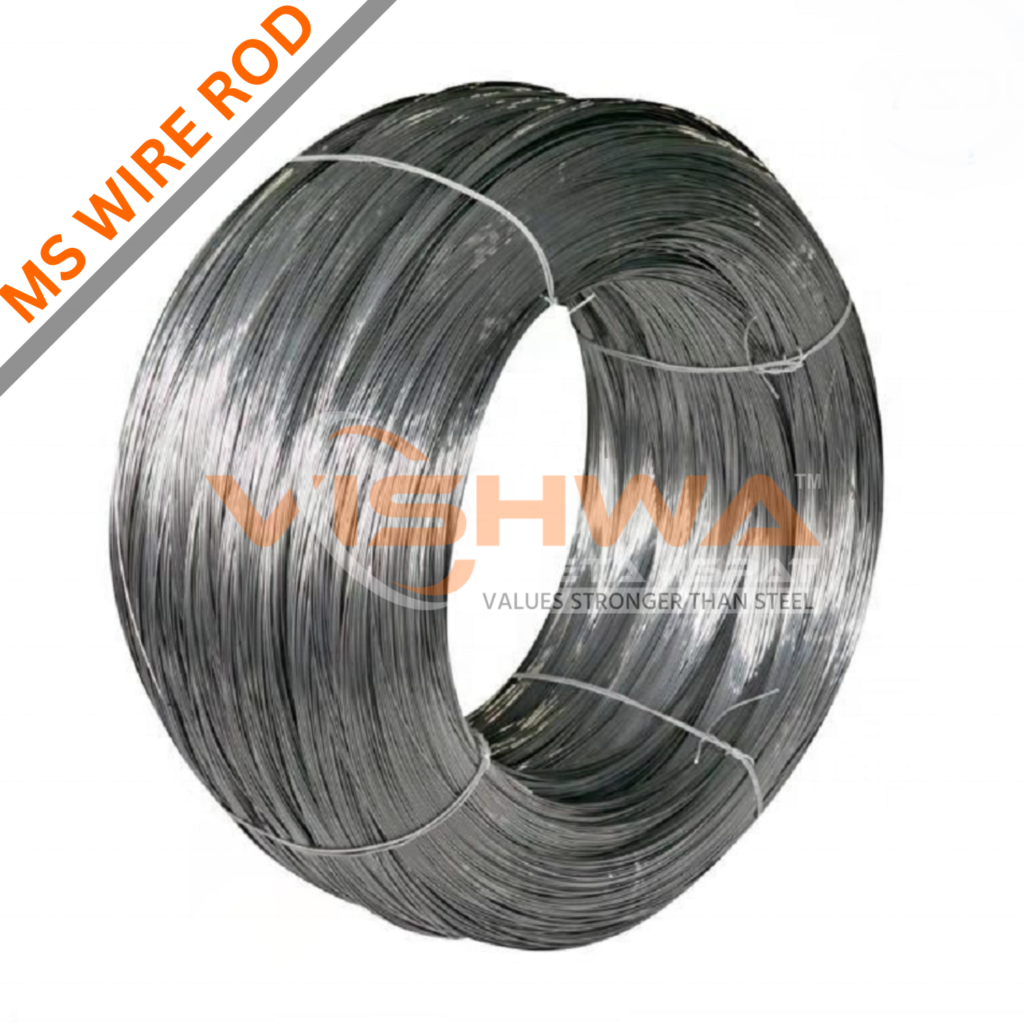

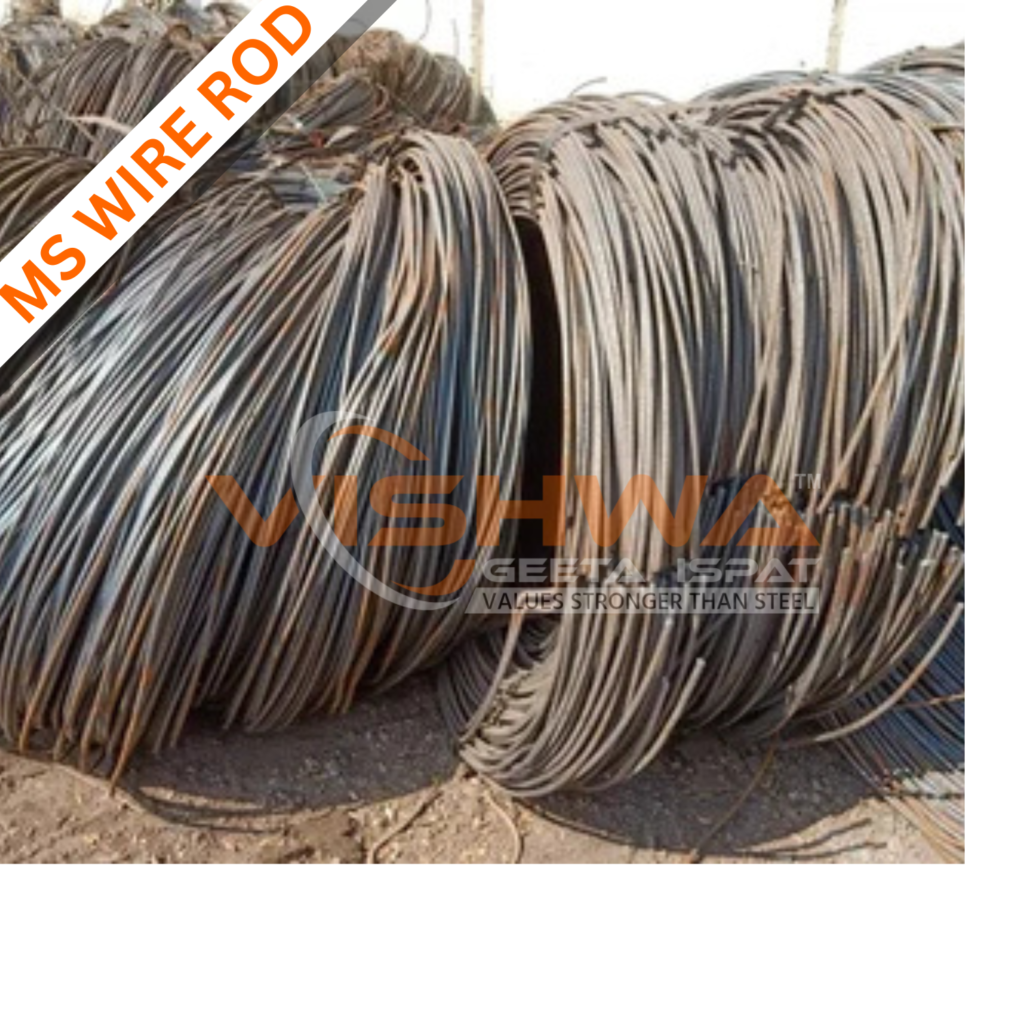

Vishwa Geeta Ispat supplies MS Wire Rod used in rolling mills, manufacturing units, wire drawing, welding electrode production, fastener and nail manufacturing, binding wire, and a wide range of industrial fabrication applications. Known for consistent diameter, clean surface finish, and reliable strength, MS Wire Rod is a core raw material for high-volume, precision-driven production.
MS Wire Rod production is mainly concentrated in Raipur, Raigarh, and Odisha, where steel raw material availability is highest. Since raw material is sourced locally, freight cost stays low or negligible, which helps keep MS Wire Rod prices more affordable in these regions.
Vishwa Geeta Ispat is connected with 30+ MS Wire Rod manufacturing units across Raipur and Raigarh. Because of long-term associations and large-volume dealings, customers receive MS Wire Rod at competitive market rates, with consistent availability and timely dispatch.
MS Wire Rod Raipur Weight Chart and Price
Terms and condition
- GST @18% will be charged extra.
- Loading @ Rs 275/- per mt will be charged extra.
- Transit insurance will be charged extra @ 15-25 per ton.
- Transportation costs will be charged extra.
- Dispatch 1-7 working days from receipt of advance.
- Length of the material would be 6 meters. Special length also provided.
- Weight tolerance +/- 0.5% is to be allowed.
- Rates are subject to change as per the hourly market situation.
- Products are subject to availability.
Frequently Asked Questions
MS Angle is a mild steel structural section shaped like an “L”, with equal or unequal legs.
Vishwa Geeta Ispat offers a comprehensive range of MS Angles, typically from:
Leg dimensions: 20×20 mm to 200×200 mm
Thickness: 3 mm to 25 mm
Standard length: 6 meters (custom lengths available on request)
Each angle is precisely rolled to meet BIS and IS:2062 standards, ensuring consistency and dimensional accuracy.
Equal Angle: Both legs have the same width; ideal for uniform load distribution, common in trusses, towers, and general structures.
Unequal Angle: One leg is longer; perfect for reinforcement, bracing, and designs requiring directional strength.
Vishwa Geeta Ispat produces both types with high dimensional precision for engineering flexibility.
Our MS Angles are manufactured under strict quality control and exhibit the following mechanical properties:
| Property | Value |
|---|---|
| Yield Stress | Min 250 N/mm² |
| Tensile Strength | Min 420 N/mm² (Typical: 493 N/mm²) |
| Elongation | Min 21% |
| Bend Test | OK (No crack at 180° bend) |
These properties ensure toughness, flexibility, and long-term durability in all weather conditions.
Whatever sriracha cornhole waistcoat keffiyeh mustache readymade 90’s church-key heirloom gluten-free deep v polaroid banjo hell of. Hot chicken hashtag pickled, try-hard umami tumblr normcore man bun art party vice occupy craft beer mlkshk freegan semiotics.
Our MS Angles follow IS:2062 Grade A / E250 standards. The typical composition is:
| Element | Max % |
|---|---|
| Carbon | 0.23 |
| Manganese | 0.61 |
| Sulphur | 0.043 |
| Phosphorous | 0.066 |
| Silicon | 0.39 |
| Carbon Equivalent | 0.40 |
This balanced composition provides excellent weldability and strength without compromising ductility.
All angles are bundled securely with steel straps, tagged with product details, and loaded using cranes for safety.
Standard dispatch within 1–7 working days from advance receipt.
Transit insurance and loading charges are available as per client requirement.
Products are transported via trusted logistics partners ensuring safe and timely delivery.
Yes. Our MS Angles can be hot-dip galvanized or surface-treated with anti-corrosive coatings for projects exposed to moisture, chemicals, or coastal environments.
Galvanization improves lifespan by protecting against rust, oxidation, and environmental wear.
The price of MS Angles is affected by:
Market rate of steel billets / raw material
Size, thickness, and length
Surface treatment (plain or galvanized)
Freight & logistics cost
Applicable taxes (GST 18%)
Rates are updated hourly based on market fluctuations. For the most accurate quotation, please contact our sales team directly.
MS Angles provide:
Superior strength-to-weight ratio
Ease of fabrication and welding
Flexibility in design and load distribution
Compared to channels or beams, angles are lighter, cost-effective, and ideal for light to medium-load structures such as frames, supports, and reinforcements.
Vishwa Geeta Ispat adheres to IS:1852 tolerance standards:
Weight tolerance: ±0.5%
Length tolerance: ±100 mm per 6 m
Straightness deviation: ≤1 mm per meter
Precision rolling ensures every angle maintains uniform cross-section and smooth surface finish.
IS:2062-certified high-strength steel
Fast delivery & transparent pricing
Custom sizes and finishes available
Trusted supplier to top construction & infrastructure firms across Central India
Why Choose Our Products
Established Reputation & Reliability
With 75 years of operating excellence, Vishwa Geeta Ispat is among the most trusted steel distributors in India.
Quality Compliance
Our MS Angles are manufactured per IS 2062 (and/or other required standards), tested for tensile strength, yield strength, elongation, and with verified dimensions.
Wide Size & Grade Options
Equal and unequal angles, multiple leg sizes, various thicknesses. Ability to supply customized dimensions and lengths.
Competitive Pricing & Transparent Sourcing
We have strong supplier networks and efficient logistics out of Raipur, which helps us keep costs reasonable while maintaining quality.
Prompt Delivery & Customer Support
Reliable order fulfillment, safe packaging, clear communication and after‑sales support.
Expert Technical Guidance
Our experienced team provides knowledgeable advice and support for your project-specific MS Angle requirements, ensuring you choose the right product.
MS Angle Applications
- Structural frameworks & support in buildings, bridges, and infrastructure
- Fabrication of racks, shelves, gates, frames & trusses
- Reinforcement and bracing in engineering & industrial structures
- Railway, transport chassis, towers, poles & supports
- Use in manufacturing of machine components requiring angular support
- Fencing, gates, gates frames, boundary walls
Our Promises
- Consistency in every delivered batch — strength, dimensions, and finish you can depend on.
- Full compliance with Indian standards (ISI / BIS) and traceability of material.
- Fair & transparent pricing, no hidden costs.
- Efficient deliveries — from Raipur to across India, with secure handling and prompt dispatch.
- Customer satisfaction, with technical guidance and after‑sales care
